DTECH DT-7460 Video HDCP 2.2 4K 60Hz 1080P HDMI RS232 IR Function KVM USB Fiber Optic Extender up to 20KM

Short Description:

Product Name: Fiber Extender with KVM

Brand: DTECH

Model: DT-7460

Send email to us PDF Download Whatsapp

Product Detail

Product Tags

DTECH DT-7460 Video HDCP 2.2 4K 60Hz 1080P HDMI RS232 IR Function KVM USB Fiber Optic Extender up to 20KM

Ⅰ. Product Parameters

Product Name	Fiber Extender with KVM
Brand	DTECH
HDMI Version	4K@60Hz / HDCP2.2
HDMI Resolution	The highest input resolution is 3840*2160@60Hz
Audio Format	L-PCM
Fiber Wavelength	1310nm; 1550nm
Fiber Transmission Distance	20km
The Maximum Operating Current	1.5A/5V DC(TX), 1.2A/5V DC (RX)
Operating Temperature Range	-10℃～+55℃
WDimension (L x W x H)	106x106x17(mm)
Weight	TX:272.1g RX:273.1g

Ⅱ. Product Introduction

HDMI fiber extender is a device transmitting HD audio and video signal via bidirectional single fiber cable. It transmits your HD display with the high resolutions up to 20km. It support IR, RS232 and KVM function.By using bidirectional single fiber LC interface, it has the characteristics of low cost and stable signal transmission. It can be used in security monitoring, high-definition signals between buildings, square large screens and other long-distance HDMI signal transmission fields.

Ⅲ. Product Features

*Support HDMI 4K@60Hz/HDCP2.2;
* Support transmitter HDMI Loop out;
* Support 3.5mm stereo output;
* Support IR;
* Support KVM;
* Support RS232;
* Comply with SFP MSA and SFF-8472 standard protocol;
* Pure hardware design, plug and play, do not need to install additional software;
* Support 4K to 1080P resolution (Downscaling).

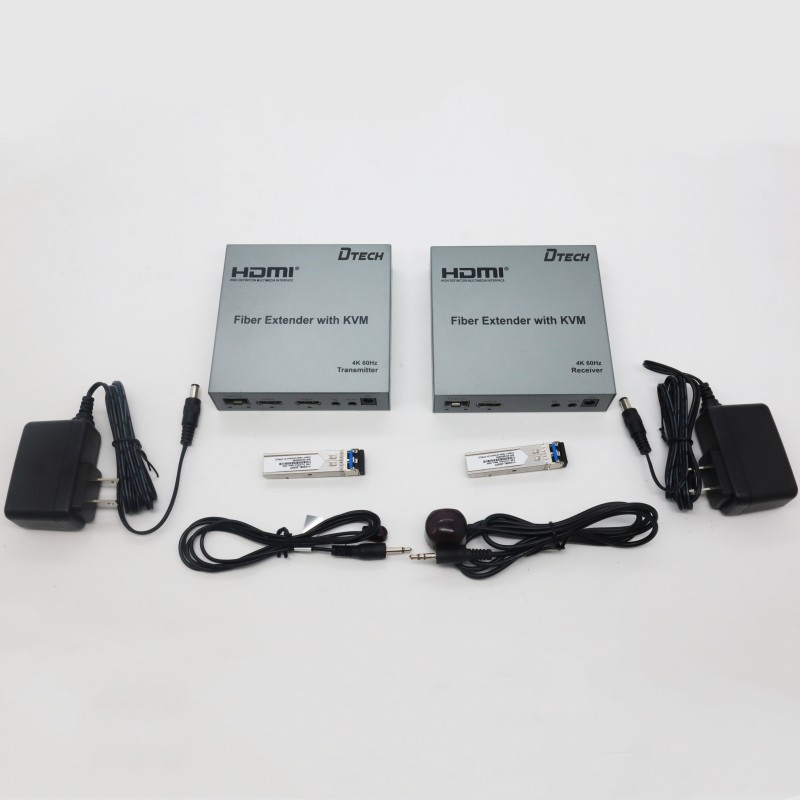

Ⅳ. Product List

1: HDMI fiber extender transmitter 1PC
2: HDMI fiber extender receiver 1PC
3: DC 5V/2A power supply 2PCS
4: User manual 1PC
5: IR Cable 1PAIR
