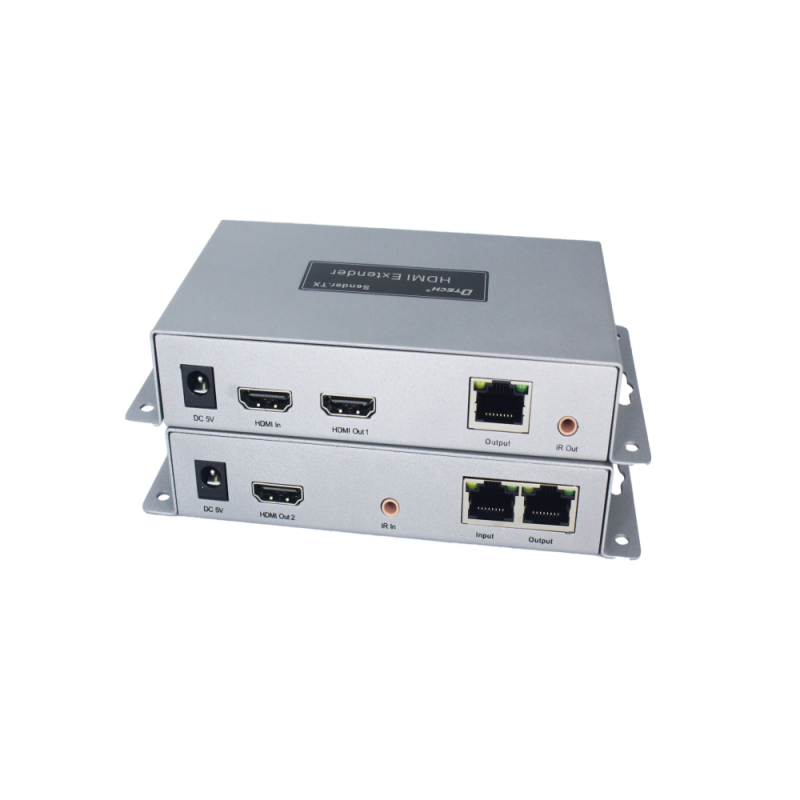

DTECH 50m Transmitter And Receiver 4K HDMI Cascading Extender Support Cascade Connection over Cat5e Cat6 Cable
DTECH 50m Transmitter And Receiver 4K HDMI Cascading Extender Support Cascade Connection over Cat5e Cat6 Cable
Ⅰ. Product Description
| Product Name | 4K HDMI Cascading Extender |
| Model | DT-7084（GS） |
| Resolution | Point to point: 4K@60Hz, up to 60m One point to five cascades: 4K@30Hz, each cascade can reach 50m, the total distance is 200m |
| Warranty | 1 Year |
Ⅱ. Product Parameter
(1) Support Cat5e/Cat6e/single shielded/unshielded twisted pair real-time point-to-point, cascaded transmission of image and audio signals;
(2) HDMI signal supports 4K@30Hz resolution, backward compatible with multiple resolutions;
(3) The transmitter supports local output;
(4) The receiving end can be connected in series with the same type of receiving end for cascade transmission, and it can be cascaded for 50 meters; (recommended to use Haikang Super Category 5 or Category 6 standard network cable)
(5) With signal 3dB gain or pre-compensation, to ensure the true restoration of high-definition signal;
(6) Anti-lightning, dust-proof, anti-static, and prolong the service life;
(7) Using 26AWG HDMI standard cable, the transmission distance at the input end can reach 10 meters, and the transmission distance at the output end can reach 5 meters.
Ⅲ. Interface Description

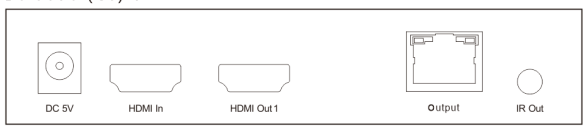

1.Transmitter
|
Interface |
Function Description |
|
DC 5V |
DC power input port, 5VDC power adapter input |
|
HDMI In |
HDMI Input Port |
|
HDMI Out1 |
HDMI Output Port |
|
Output |
Network Cable output Port |
|
IR Out |
Connect infrared output Port |

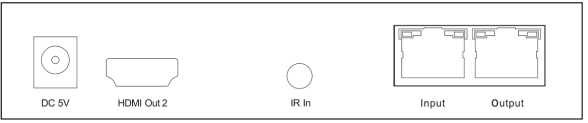

2.Receiver
|
Interface |
Function Description |
|
DC 5V |
DC power input port, 5VDC power adapter input |
|
HDMI Out2 |
HDMI Output Port |
|
IR In |
Connect infrared input Port |
|
Iuput |
Network Cable input Port |
|
Output |
Network Cable output Port |
Ⅳ. Product List
1. TX transmitter *1
2. RX receiver *1
3. User Manual *1
