Ⅰ. Product introduction

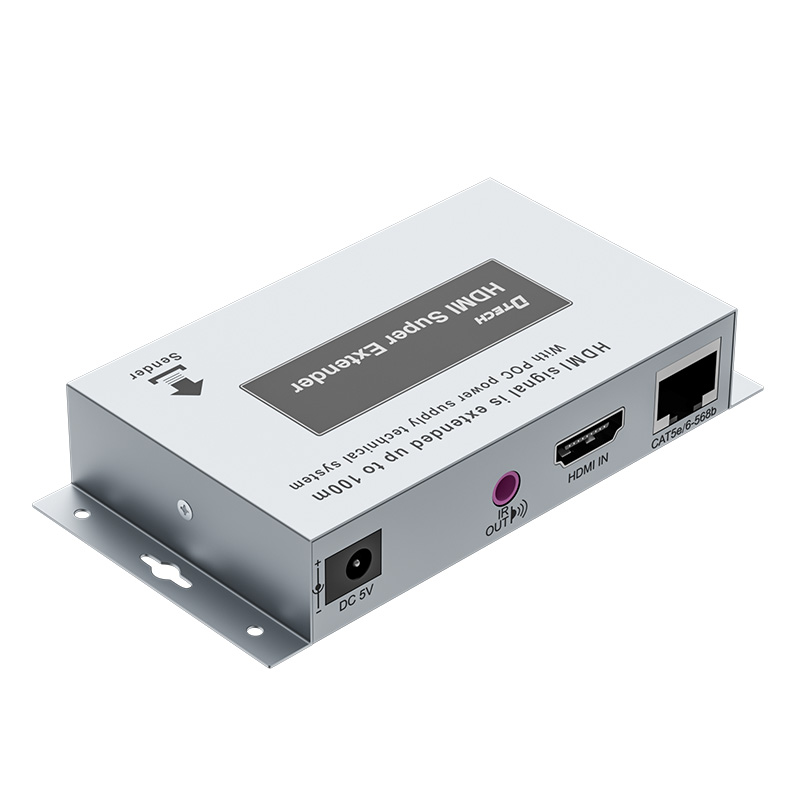

This extender is consists of a transmitter and a receiver. The audio and video signals are transmitted in a shallow compression method, and there is no need to perform digital / analog or analog / digital conversion on the signals before transmission; It can also be matched with broadband digital content protection to prevent unauthorized copying of audiovisual content with copyright. After the product is extended by using super Cat5 or Cat6 network cables, the far-end image restoration effect is clear and natural, without obvious attenuation. Also support IR infrared return function, which is convenient for users to control the display switch, adjust the volume level, and switch the TV channel. Widely used in computer teaching systems, high-quality multimedia displays, video conferences, computers, digital home theaters, exhibitions, education, finance, scientific research, meteorology and other fields.
Ⅱ. Product function parameters
1. HDMI audio and video signals can be transmitted through Cat5 and Cat6 network cables extend the distance up to 100 meters.（Network cable requirements: Please use the recommended brand network cable: Haikang, Dahua, Super Category 5, Category 6 shielded network cable).
2. Support resolution up to 1080P @ 60Hz and backward compatible resolution.
3. Support IR infrared remote control;
4. Built-in automatic equalization system, the picture is smooth, clear and stable;
5. Built-in ESD protection circuit to protect the system from all aspects;
6. Support POC power supply (only need to connect the power supply of this product at the transmitting end)
7. This product supports the resolution of 1080P and other progressive scanning formats, and does not support the resolution of 1080I interlaced scanning formats.
