DTECH DT-9004 Industrial Grade Passive RS232 to RS485 Serial Converter Communication Adapter
DTECH DT-9004 Industrial Grade Passive RS232 to RS485 Serial Converter Communication Adapter
Ⅰ.Product Parameters
| Product Name | Passive RS232 to RS485 Converter(with lighting) |
| Model | DT-9004 |
| Interface Compatibility | RS232, RS485 standards |
| Transmission Rate | 300bps-115.2Kbps |
| Operating Environment | -20 ℃ -70 ℃, relative humidity of 5% -95% |
| Transmission Distance | Less than 1200m (RS485 end), within 15m (RS232 end) |
| Warranty | 1 Year |
Ⅱ.Product Descriptions

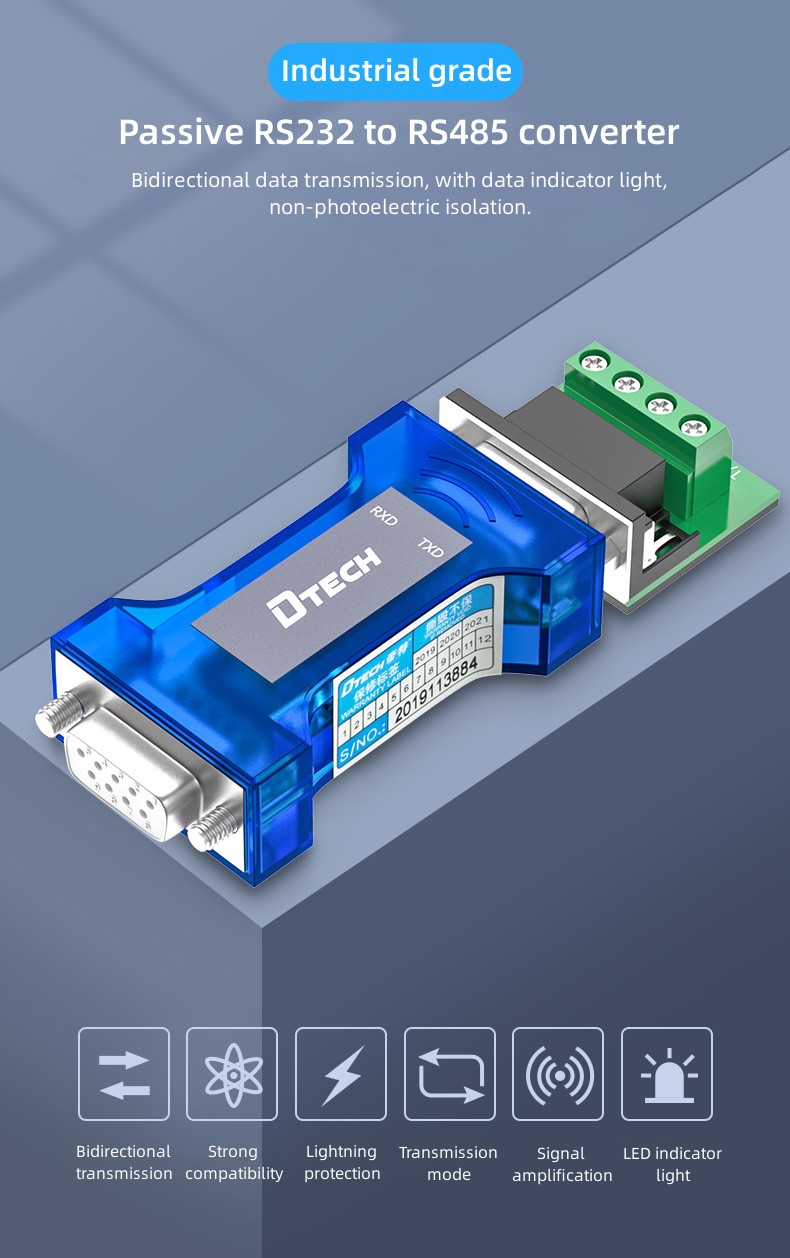

Industrial grade
Passive RS232 to RS485 converter
Bidirectional data transmission, with data indicator light, non-photoelectric isolation.
①Bidirectional transmission
②Strong compatibility
③Lightning protection
④Transmission mode
⑤Signal amplification
⑥LED indicator light

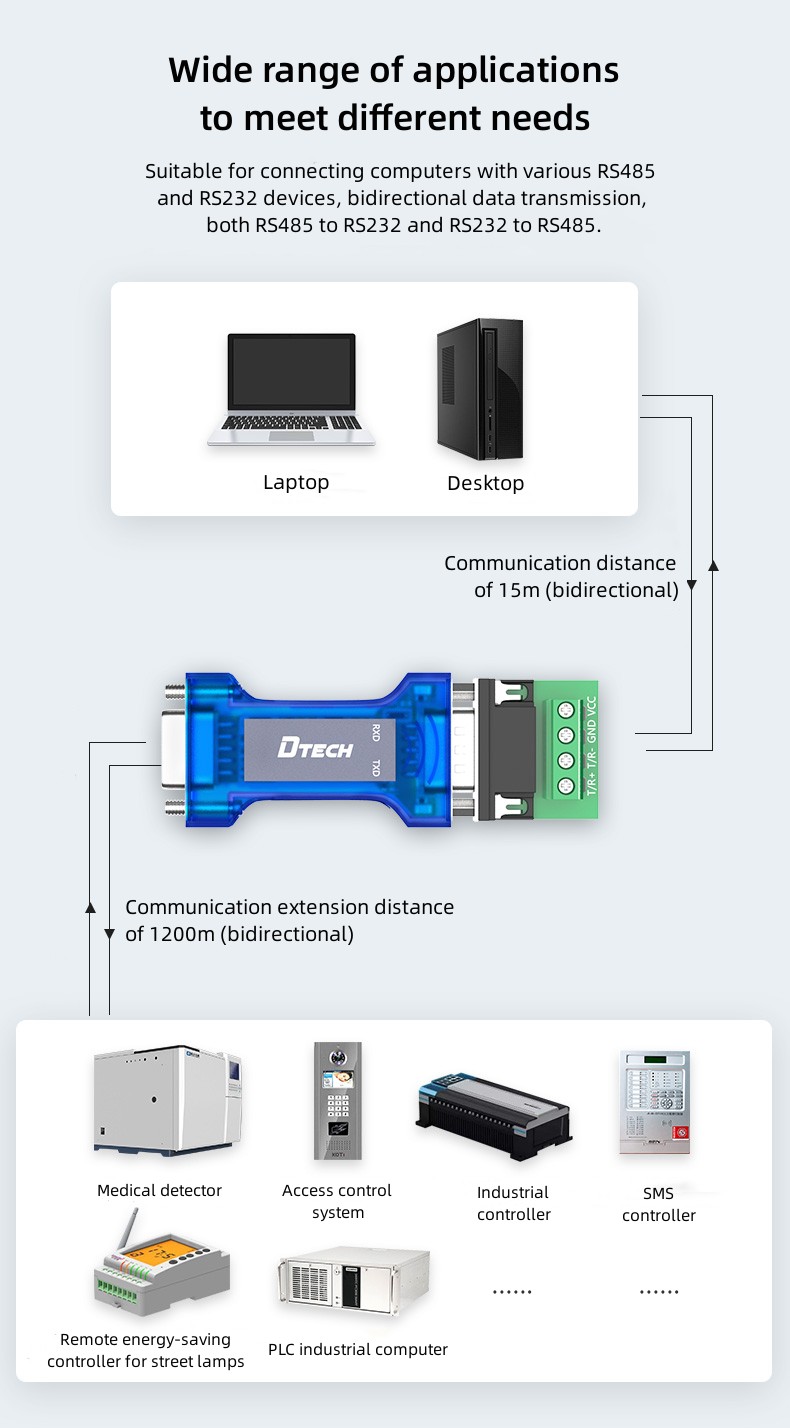

Wide range of applications to meet different needs
Suitable for connecting computers with various RS485 and RS232 devices, bidirectional data transmission, both RS485 to RS232 and RS232 to RS485.

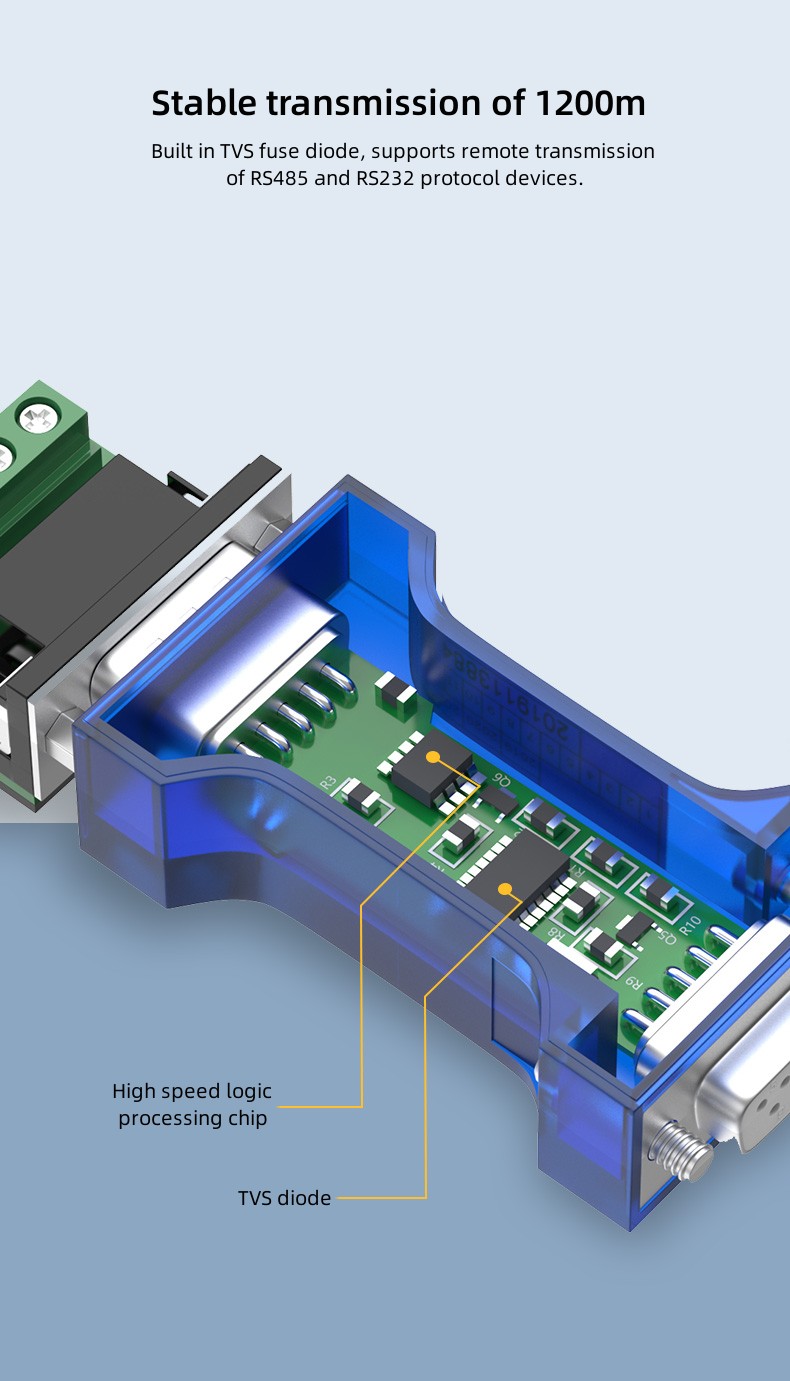

Stable transmission of 1200m
Built in TVS fuse diode, supports remote transmission of RS485 and RS232 protocol devices.

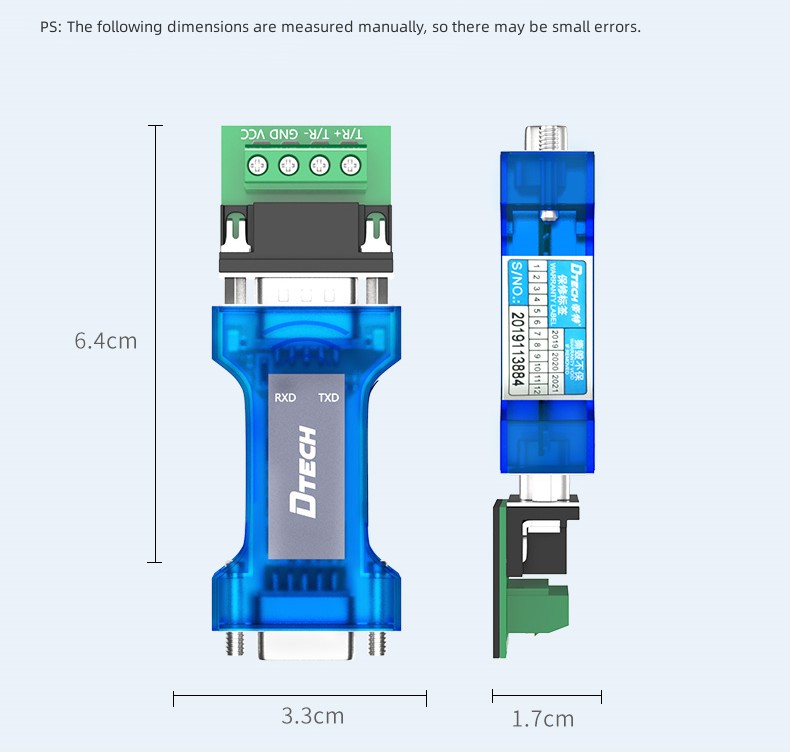

Ⅲ.Product Size

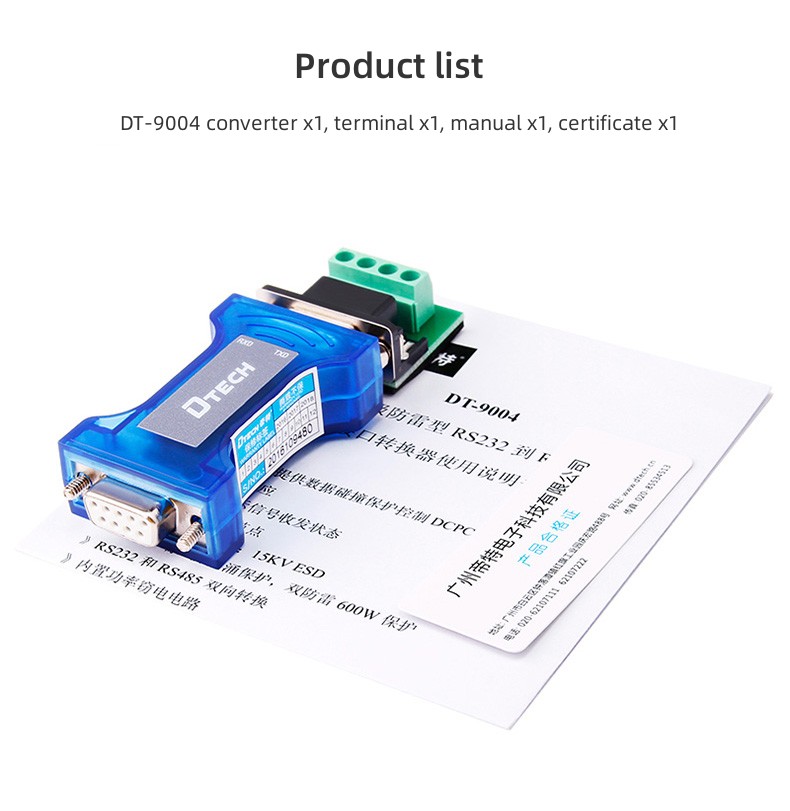

Ⅳ.Product List
