DTECH 5km Long Distance Wireless Digital Radio DTU Wireless Data Video Transmission Equipment

Short Description:

High gain, high receiving sensitivity, and very strong wall penetration ability. At the same distance, compared with LORA products, it can transmit more data and the transmission speed is faster. At the same time, the amount of data will not lose packets, which solves the problem of LORA’s small amount of data for long-distance transmission, the problem of packet loss.

Product Name: RS232 RS485 Wireless Data Transmission LORA

Brand: DTECH

Model: IOT9062

Send email to us PDF Download Whatsapp

Product Detail

Product Tags

DTECH Waterproof IP65 Data Transfer Serial RS232 RS485 Wireless Transmission Station to DTU TPUNB Converter

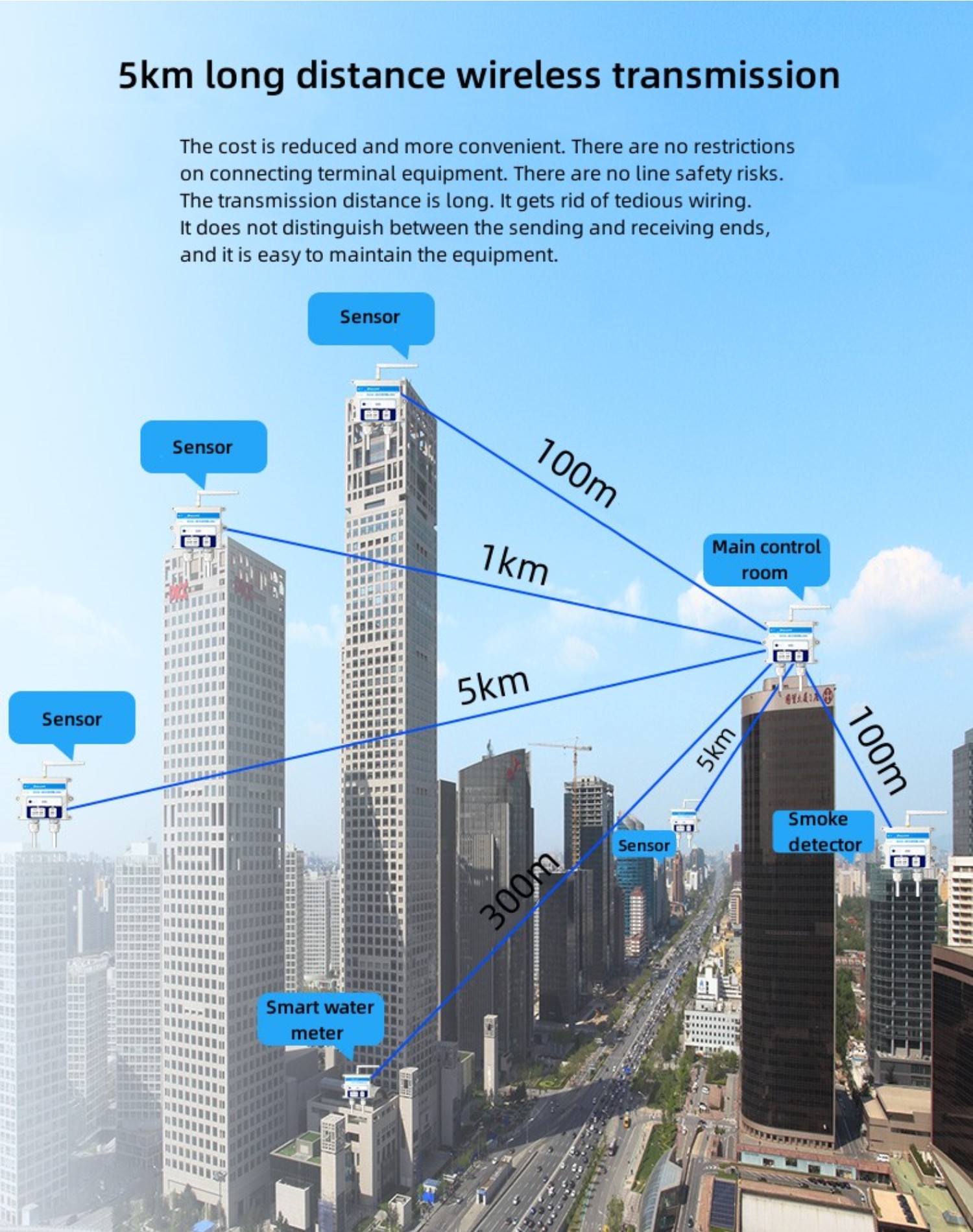

5km long distance wireless transmission
The cost is reduced and more convenient. There are no restrictions on connecting terminal equipment. There are no line safety risks. The transmission distance is long. It gets rid of tedious wiring. It does not distinguish between the sending and receiving ends, and it is easy to maintain the equipment.

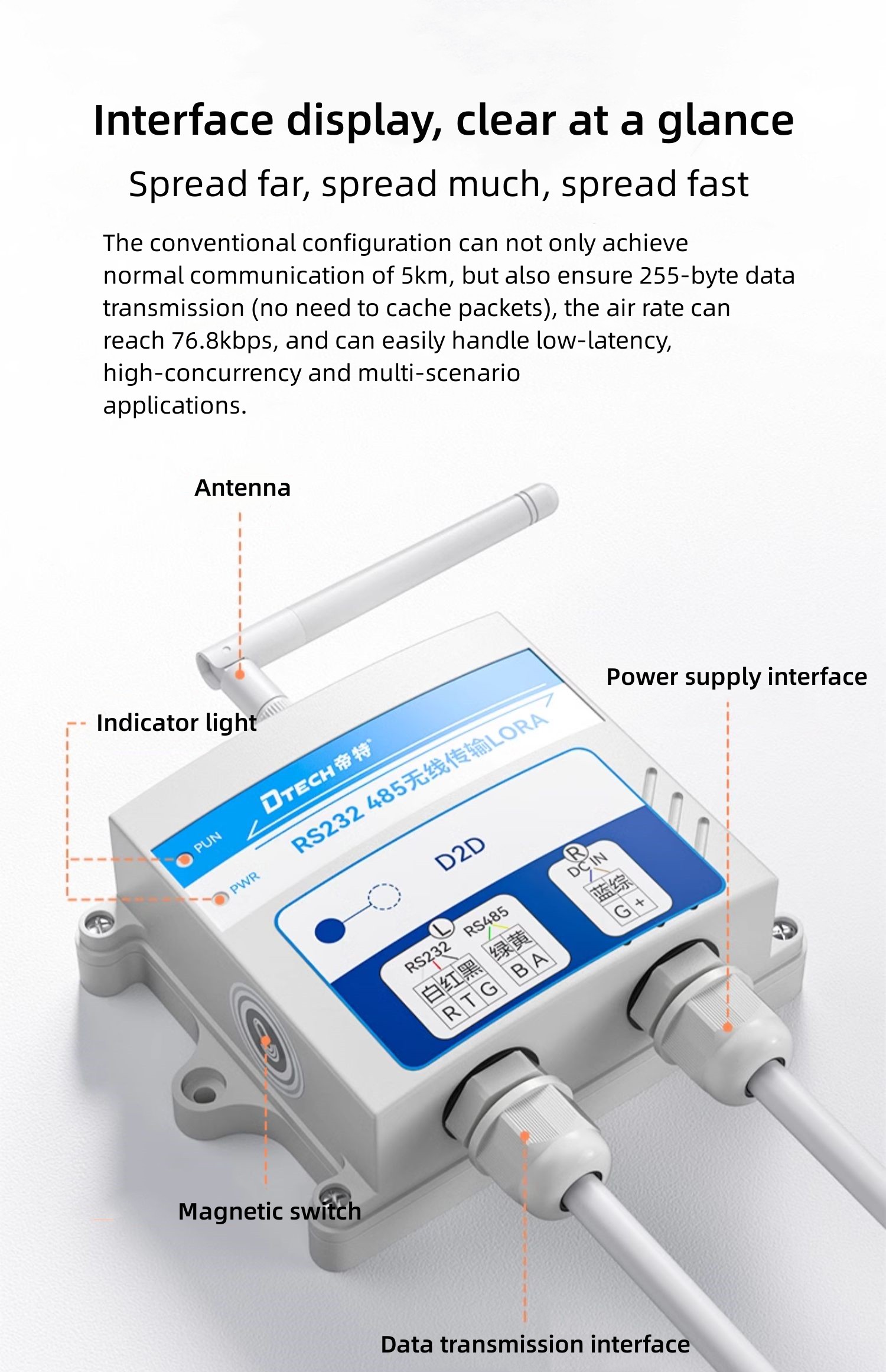

Interface display, clear at a glance
Spread far, spread much, spread fast
The conventional configuration can not only achieve normal communication of 5km, but also ensure 255-byte data transmission (no need to cache packets), the air rate can reach 76.8kbps, and can easily handle low-latency, high-concurrency and multi-scenario applications.

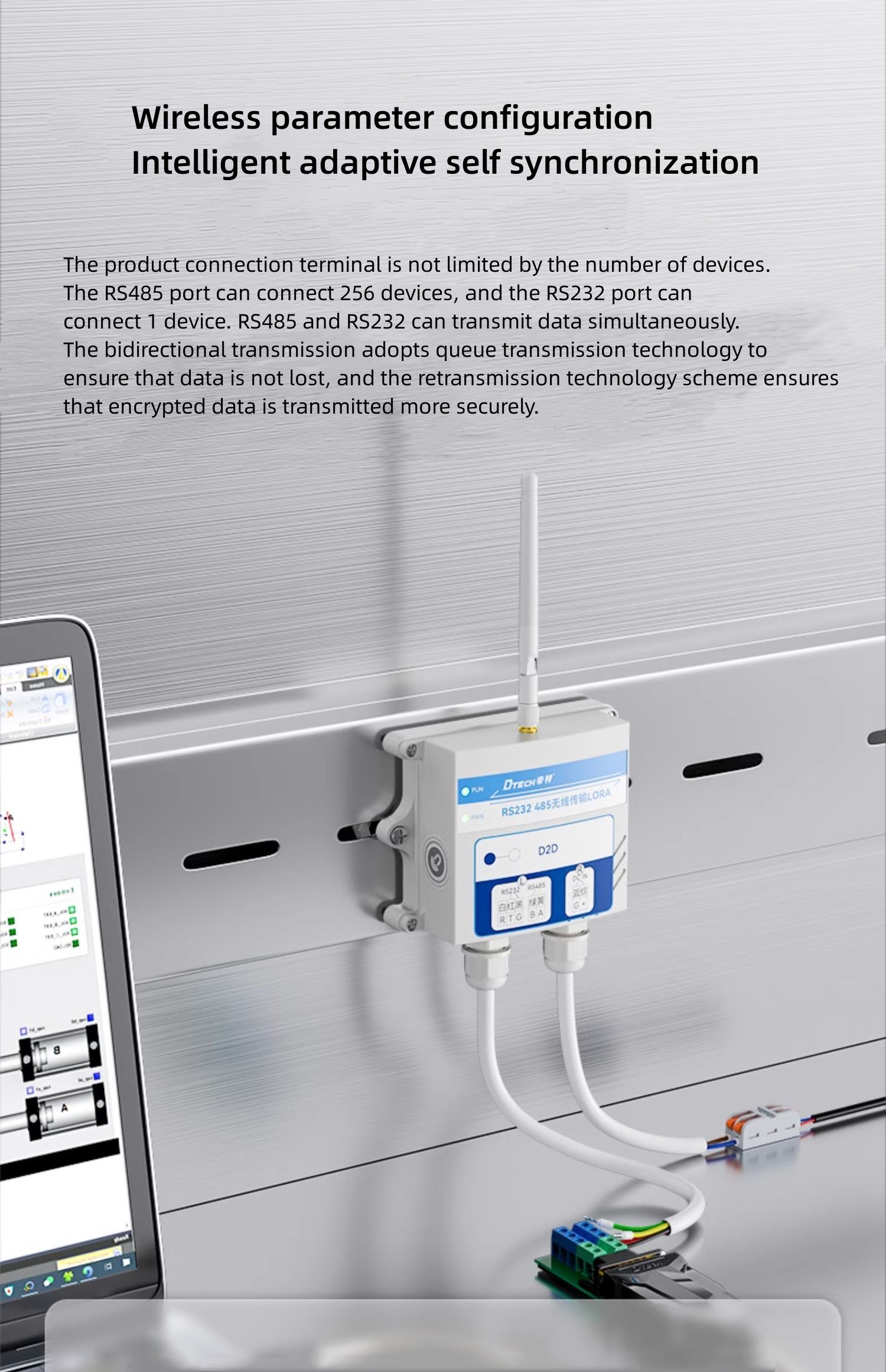

Wireless parameter configuration, intelligent adaptive self synchronization
The product connection terminal is not limited by the number of devices. The RS485 port can connect 256 devices, and the RS232 port can connect 1 device. RS485 and RS232 can transmit data simultaneously. The bidirectional transmission adopts queue transmission technology to ensure that data is not lost, and the retransmission technology scheme ensures that encrypted data is transmitted more securely.

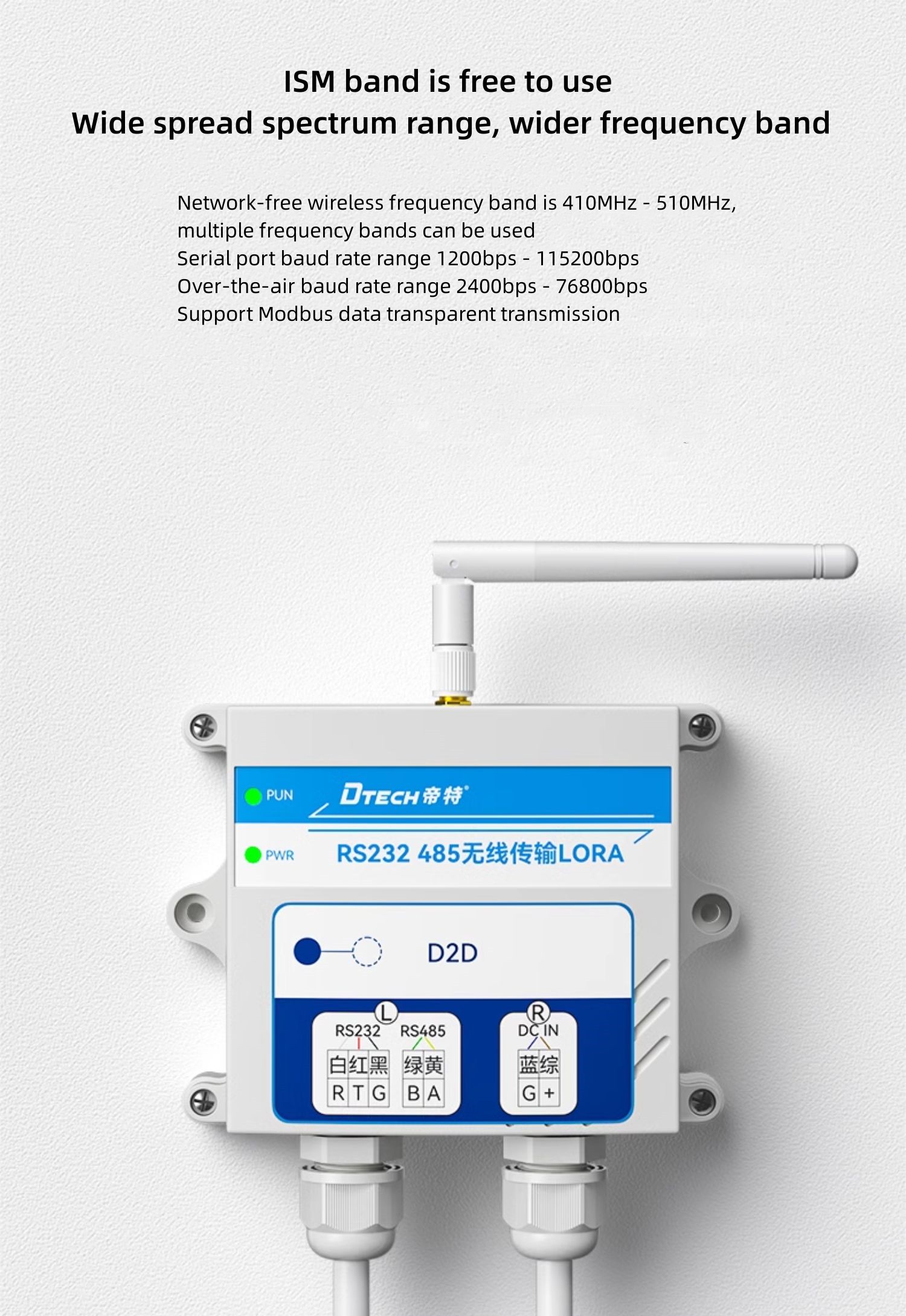

ISM band is free to use
Wide spread spectrum range, wider frequency band
Network-free wireless frequency band is 410MHz – 510MHz, multiple frequency bands can be used
Serial port baud rate range 1200bps – 115200bps
Over-the-air baud rate range 2400bps – 76800bps
Support Modbus data transparent transmission

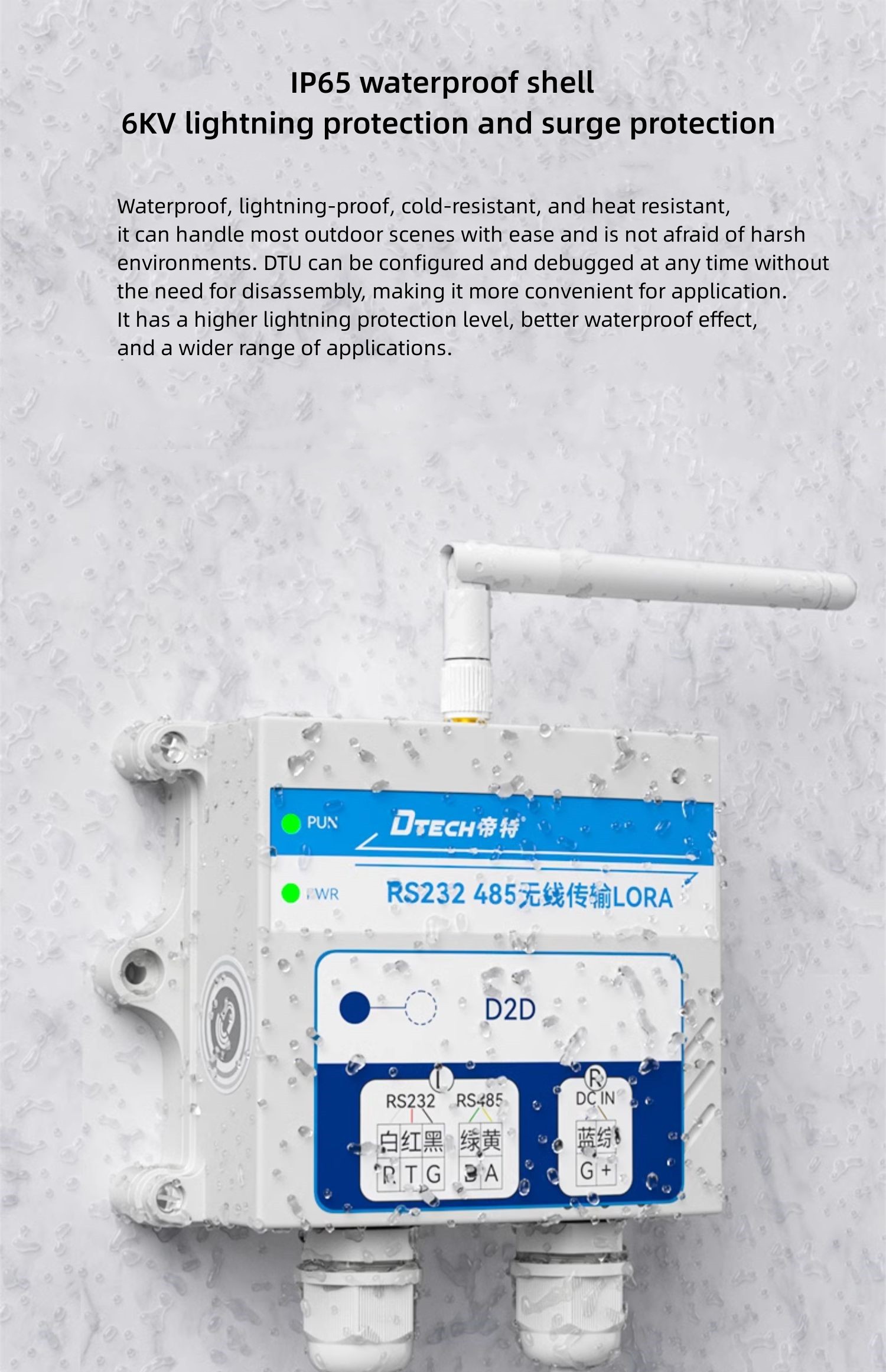

IP65 waterproof shell
6KV lightning protection and surge protection
Waterproof, lightning-proof, cold-resistant, and heat resistant, it can handle most outdoor scenes with ease and is not afraid of harsh environments. DTU can be configured and debugged at any time without the need for disassembly, making it more convenient for application. It has a higher lightning protection level, better waterproof effect, and a wider range of applications.

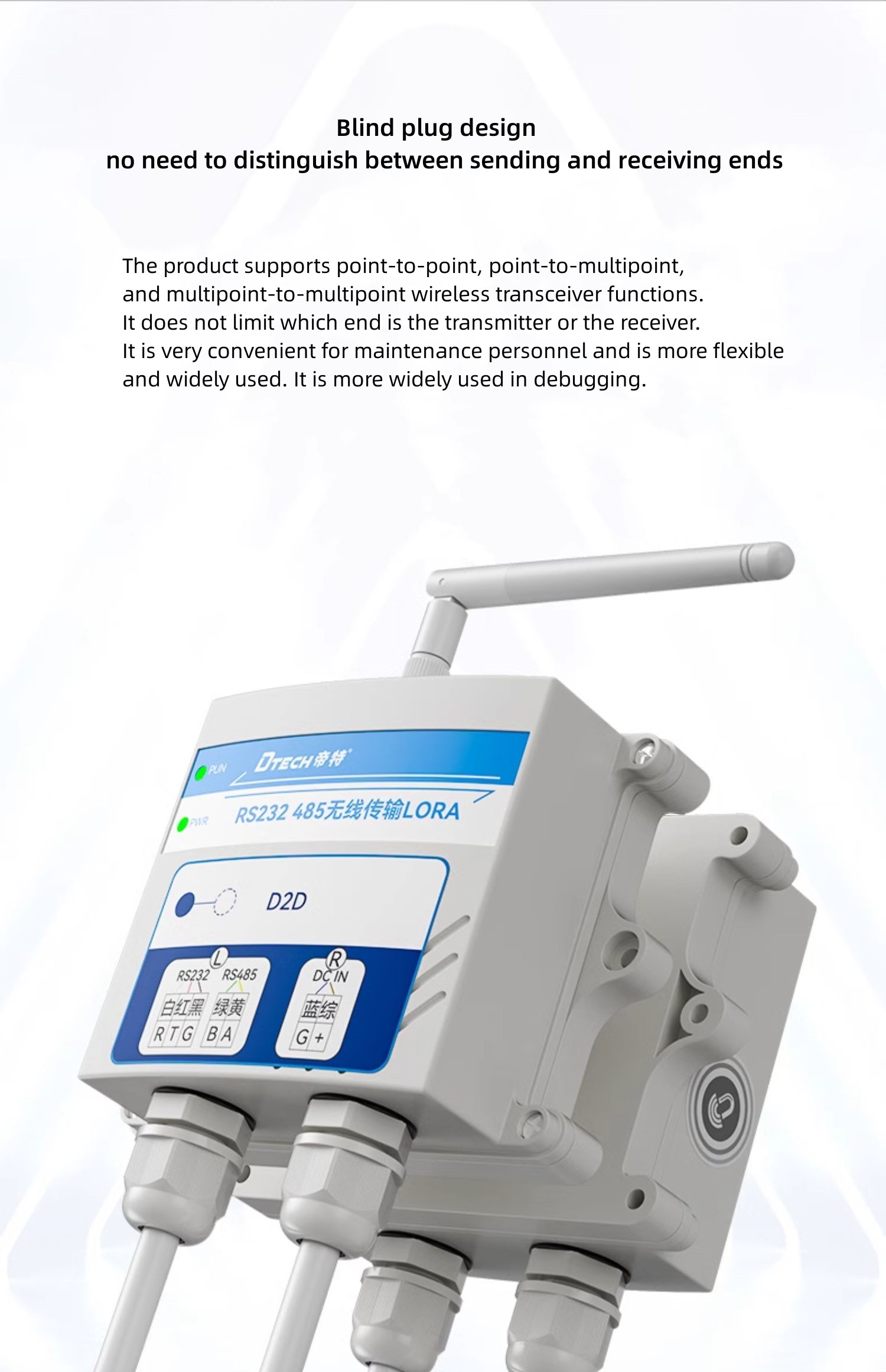

Blind plug design, no need to distinguish between sending and receiving ends
The product supports point-to-point, point-to-multipoint, and multipoint-to-multipoint wireless transceiver functions. It does not limit which end is the transmitter or the receiver. It is very convenient for maintenance personnel and is more flexible and widely used. It is more widely used in debugging.

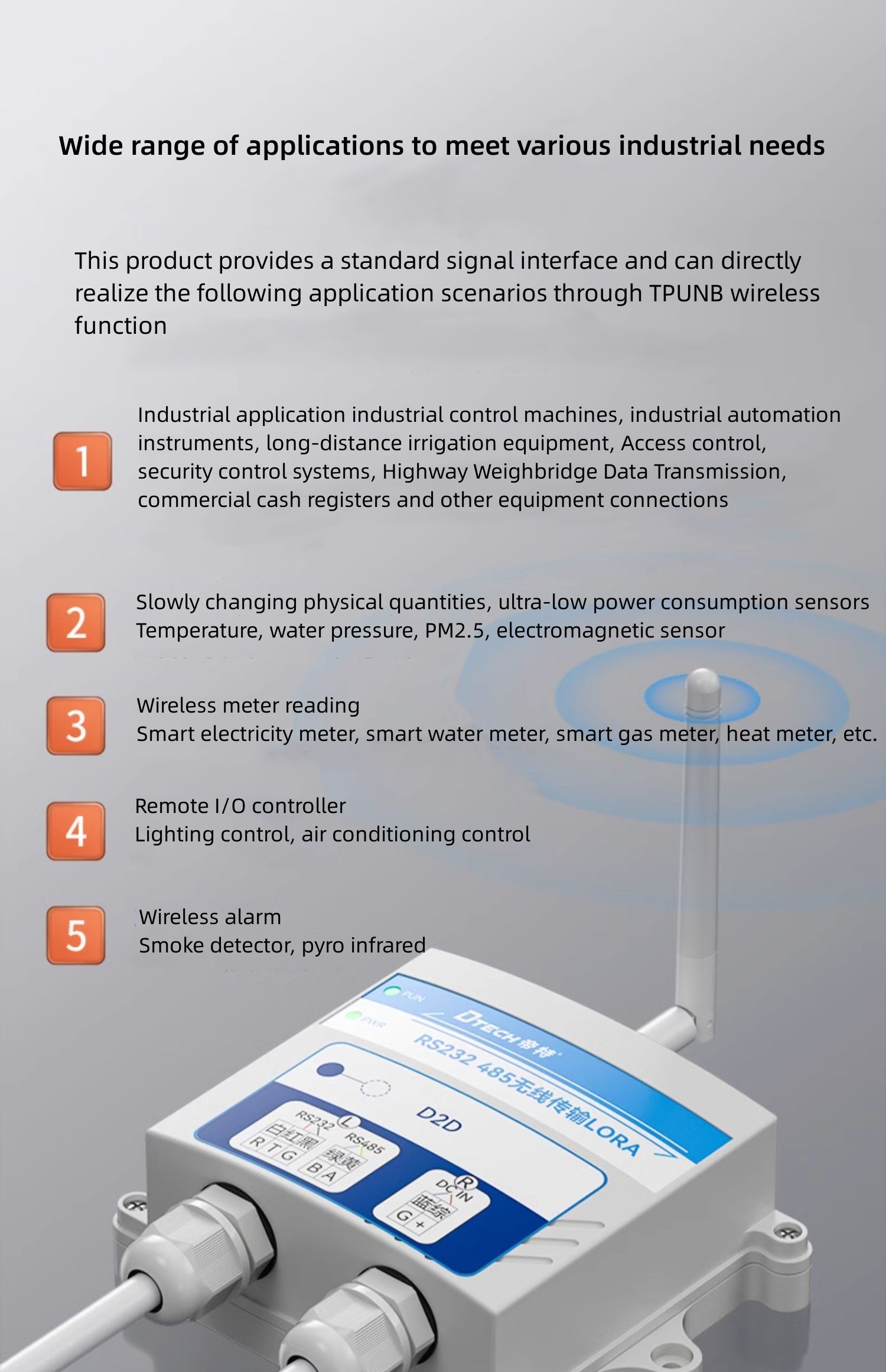

Wide range of applications to meet various industrial needs
This product provides a standard signal interface and can directly realize the following application scenarios through TPUNB wireless function
1. Industrial application industrial control machines, industrial automation instruments, long-distance irrigation equipment,
Access control, security control systems, Highway Weighbridge Data Transmission, commercial cash registers and other equipment connections
2. Slowly changing physical quantities, ultra-low power consumption sensors
Temperature, water pressure, PM2.5, electromagnetic sensor
3. Wireless meter reading
Smart electricity meter, smart water meter, smart gas meter, heat meter, etc.
4. Remote I/O controller
Lighting control, air conditioning control
5. Wireless alarm
Smoke detector, pyro infrared
